Transceiver
400G - QSFP-DD
Professional optical transceiver product series, providing high-speed and reliable data transmission solutions for data center applications.
Supports 400G high-speed transmission
QSFP-DD package form
Complies with international standards

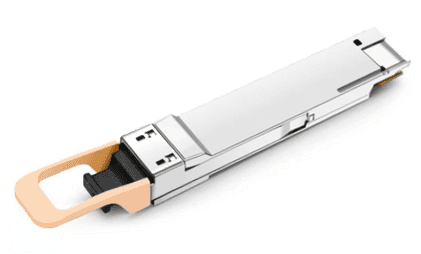

CTQD4HSRC-01
400G - QSFP-DD Product Specifications
5 Products
| Part No. | Connector | Data Rate | Form Factor | Interface | Power Consumption (W) | Reach | Receiver | Rx Power (dBm) | Temperature (°C) | Transmitter | Tx Power (dBm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CTQD4HLRC-01 | Duplex LC | 400G | QSFP-DD | LRR | 10 | 10km | PIN | -9 - 5.1 | 0-70 | EML CWDM | -2.7 - 5.1 |
| CTQD4HS8C-01 | MPO-16 | 400G | QSFP-DD | SR8 | 8 | 100m | PIN | -8.4 - 4 | 0-70 | 850nm VCSEL | -6.5 - 4 |
| CTQD4HSRC-01 | MPO-12 | 400G | QSFP-DD | SR4 | 8 | 100m | PIN | -6.4 - 4 | 0-70 | 850nm VCSEL | -4.6 - 4 |
| CTQD4HDRC-01 | MPO-12 | 400G | QSFP-DD | DR4 | 10 | 500m | PIN | -5.9 - 4 | 0-70 | 1310nm EML | -2.9 - 4 |
| CTQD4HFRC-01 | Duplex LC | 400G | QSFP-DD | FR4 | 10 | 2km | PIN | -7.3 - 3.5 | 0-70 | EML CWDM | -3.2 - 4.4 |
