DAC
800G - OSFP
Professional direct attach cable product series, providing high-speed and reliable short-distance data transmission solutions.
Supports 800G high-speed transmission
OSFP package form
Complies with international standards

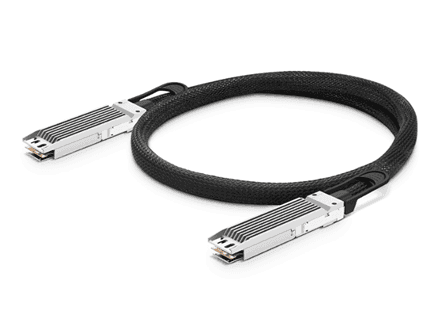

CDOD8HXXC-02
800G - OSFP Product Specifications
6 Products
| Part No. | AWG | Data Rate | Form Factor | Interface | Reach | Remark | Temperature | Housing |
|---|---|---|---|---|---|---|---|---|
| C5OD8HXXC-02 | 26-30 | 800G | OSFP | F4 | 0.5~3m | 200G QSFP56 | 0-70 | FLT/FIN |
| C6ODS8HXXC-02 | 26-30 | 800G | OSFP | F8 | 0.5~3m | 100G QSFP28 | 0-70 | FLT/FIN |
| CCOD8HXXC-02 | 26~34 | 800G | OSFP | ACC | 3~5m | 0-70 | FLT/FIN | |
| CEOD8HXXC-02 | 26~34 | 800G | OSFP | AEC | 5~7m | BER (Post-FEC) <10-15 | 0-70 | FLT/FIN |
| CDOD8HXXC-02 | 26-30 | 800G | OSFP | DAC | 0.5~3m | 0-70 | FLT/FIN | |
| C4OD8HXXC-02 | 26-30 | 800G | OSFP | F2 | 0.5~3m | 400G QSFP112 | 0-70 | FLT/FIN |
